Description

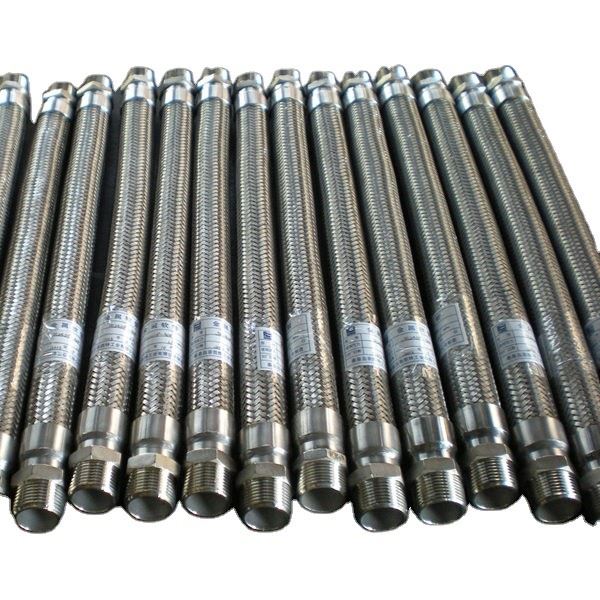

Metal hose is an important connecting component in engineering technology, which is composed of corrugated flexible pipe, mesh sleeve and joint.
1. Connection method:
The connection methods of Ss Flexible Metal Hose are divided into flange connection, thread connection and quick connector connection. Small-diameter metal flexible hoses are generally connected by screws and quick connectors, while larger diameters are generally Flanged connections.
2. Product structure: Fect Sus304 316 316l Flexible Metal Hose is made of stainless steel bellows - layer or multi-layer steel wire or steel belt mesh sleeve, with joints or flange heads at both ends, for conveying various media flexible components.
3. Product features: acid resistance, alkali resistance, temperature resistance (-196°C^ +420°C), heavy
Light weight, small size and good flexibility. Widely used in steel mills, minerals, petroleum, chemical
Industry, metallurgy, electric power, paper, wood, textile, construction, transportation and other industries.
| item | value |
| Standard | GB |
| Place of Origin | China |
| Brand Name | FECT |
| Model Number | SFH- 1 |
| Type | Welded |
| Steel Grade | 300 Series |
| Application | Industry, Machinery, Heating and Cooling Systems, Gas,Water, Chemistry, Food, etc. |
| Welding Line Type | Seamless |
| Tolerance | 3% |
| Grade | stainless steel |
| Section Shape | Round |
| Alloy Or Not | |Is Alloy |
| Steel Grade | 316L, 316, 304 |
| Surface Finish | BA |
| Invoicing | by actual weight |
| Delivery Time | 15-21 days |
| DN | 8mm |
| Inner Diameter | 7.8mm |
| Outer Diameter | 11.6mm |
| Static Working pressure Single braid | 65 kgflc m |
| Static Bending radius | 15mm |
| Dynamic Working pressure Single braid | 57 kgflc m |
| Dynamic Bending radius | 45mm |
| Exploding pres sure Single braid | 630 kgf/c m' |
Application
Sus304 316 316l Flexible Metal Hose is used as a compensation element, a sealing element, a connecting element and a shock absorbing element in various gas transmission and infusion pipeline systems and length, temperature, position and angle compensation systems. Its characteristics are: acid resistance, alkali resistance, temperature resistance (-196 °C-+420"C), light weight, small size and good flexibility. It is used in various fields such as industrial agriculture, petroleum, chemical industry, mining, machinery and shipbuilding, light textile electronics, energy construction and so on.
