Description

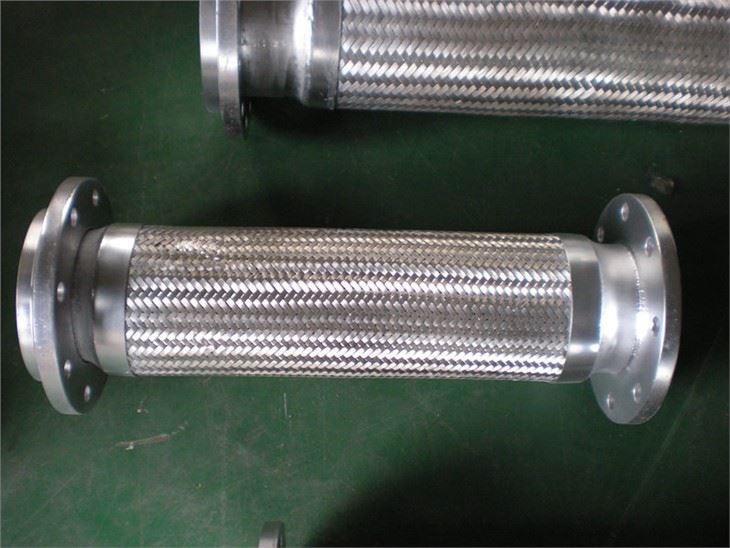

In the process of steelmaking production, Top Oxygen Blowing Corrugated Metal Hose For Converter are widely used to transmit Oxygen and water. By innovation of technology, we have improved the working life of the corrugated metal hose and the working conditions. The flange Standard implements National Standard, it also can be produced according to the customer's Demands. The temperature of the working environment is≤400C, the smallest bending radius is less than 20 DN. The material of the flange can be Q235B, coded A, and when it's stainless steel, coded B.

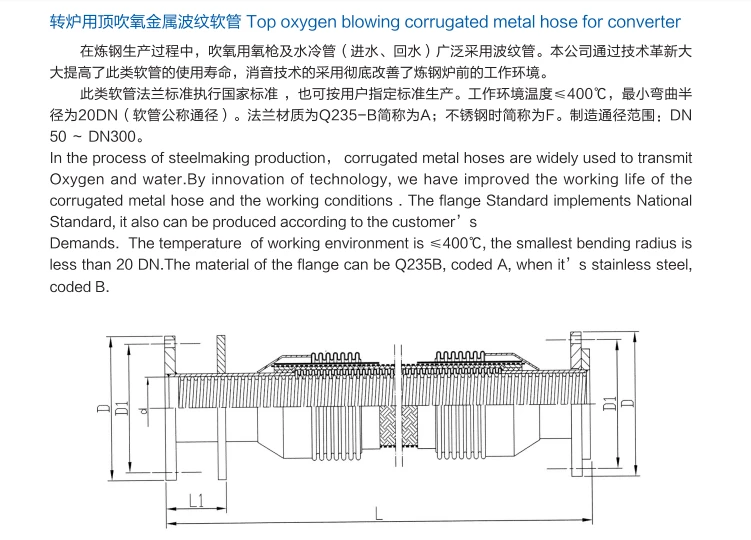

Length calculation
Features
The Top Oxygen Blowing Corrugated Metal Hose For Converter has many excellent features such as good flexibility, fatigue resistance, high and low-temperature resistance, corrosion resistance, etc. It has a much higher life than other types of hoses (rubber hoses, plastic hoses).
Application
1) Transport corrosive chemicals or organic solvents. (for example loading and unloading ammonia, acetone, etc.)
2) It transports high-temperature media such as high-temperature gas and hot oil. (Example: hot steam, heat transfer oil, etc.)
3) Transport low-temperature or ultra-low-temperature media. (eg liquid nitrogen)
4) Conveying water, steam, oil, and other media in a high-temperature environment. (Example: water vapor system and hydraulic system in coking, steel making, continuous casting equipment)
5) Piping that requires damping or noise reduction. (eg: import and export of pumps)
Available Connection Type
1) Flange type
2) Threaded thread type
(Including A type flat head, C type bell mouth, D type round head, H type 24 ° taper buckle)
3) Sanitary grade chuck type
4) Quick joint type
5) Welded type
FAQ
Q: Are you Factory?
A: Yes, we are a factory and have more than 15 years of production experience.
Q: What are your main products?
A: Our main products include Flexible Metal Hose, Pipe Fittings, compensators, Hydraulic Rubber Hose, PTFE tubes, etc.
Q: How can you guarantee the quality of your products?
A: We have professional quality inspectors who will check the quality of the goods before delivery.
Q: Can you provide samples?
A: Yes, we can provide free samples.
If you are interested in our Top Oxygen Blowing Corrugated Metal Hoses, please feel free to contact us.
