Introduction

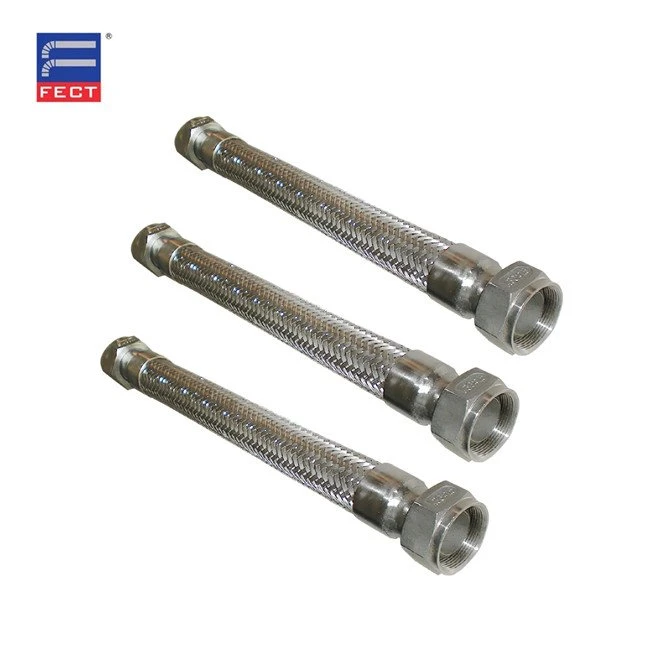

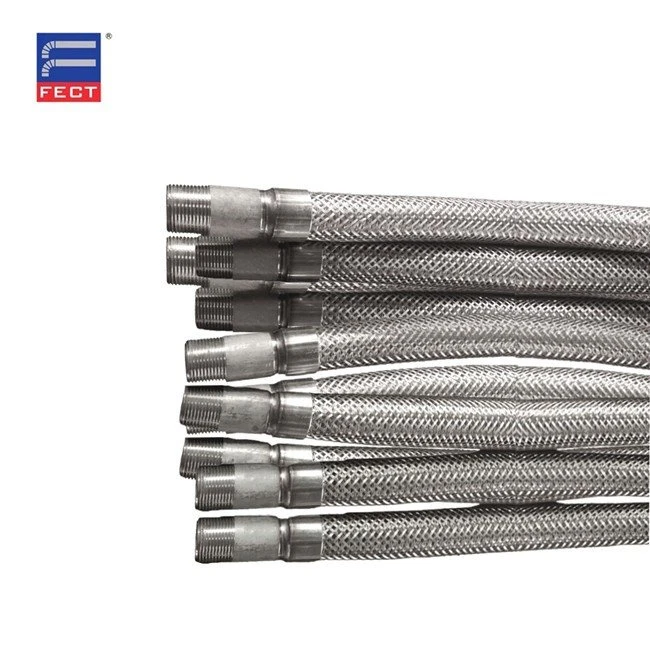

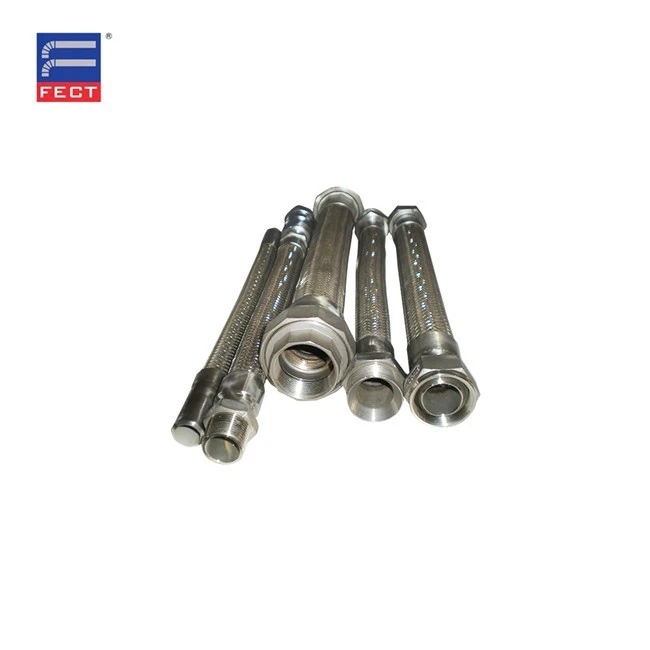

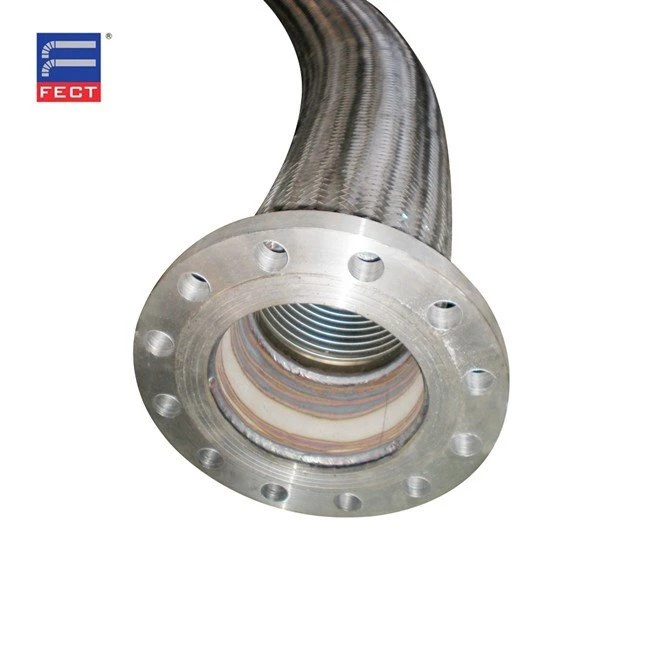

Tube connector stainless steel hose is one kind of stainless steel corrugated hose.This product is made up of tube,welding ring,hose and braid.
Product description
Standard | GB |
Place of origin | China |
Province | Hebei |
Brand | Fect |
Model | FT |
Certification | ISO9001:2015 |
Weld shape | Longitudinal seam welding |
Tolerance | -1-3% |
Diameter | DN8-400mm |
Material | Stainless steel |
Grade | SUS304, SUS316, SUS316L,SUS321 |
Braid | SUS304 |
Connector | Customized |
Application | Industry,machinery,heating and cooling systems,gas,water, chemistry,food,etc. |
Size
DN(mm) | d(mm) | δ（Min） | L1(Min,mm) |
8 | 13.5 | 2 | 25 |
10 | 17.2 | 2 | 25 |
12 | 17.2 | 2 | 25 |
16 | 21.3 | 2 | 25 |
20 | 26.9 | 2 | 30 |
25 | 33.7 | 2.3 | 30 |
32 | 42.4 | 2.6 | 30 |
40 | 48.3 | 2.6 | 30 |
50 | 60.3 | 2.9 | 40 |
65 | 76.1 | 2.9 | 40 |
80 | 88.9 | 3.2 | 40 |
100 | 114.3 | 3.6 | 50 |
125 | 139.7 | 4 | 50 |
150 | 168.3 | 4.5 | 70 |
200 | 219.1 | 6.3 | 70 |
250 | 273 | 6.3 | 70 |
300 | 323.9 | 7.1 | 70 |
350 | 377 | 9 | 70 |
400 | 426 | 9 | 70 |
Feature
High physical strength with light weight and a long usage life.
Producing process
Braiding--making corrugated pipe--cutting--annealing--first welding--putting on the braid and welding ring--pressing the welding ring--second welding--testing pressure--burnishing--finish.
Our service
We sincerely welcome you to discuss business with us, build up good cooperation relationship, and seek win-win opportunities. We will provide products and services with superior quality at a competitive price.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock or 30-45 days if the goods are not in stock, depending on order quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer one sample of stainless steel hose or wire rope sling for free, but we don't pay the freight.One sample of metal pallet is not free.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% T/T in advance.
Payment>10000USD, 30% T/T in advance, balance before shipment.
We accept T/T and L/C.
