Technical data-Fire Sprinkler Hose Pipes
Model | Rated Pressure, psig | Max. Ambient Temp, ºF(ºC) | Nom.Inlet by Outlet Size, in. | Assembly Length, ft(mm) | Max No. of 90º Bends | Min Bend Radius, in. | Equivalent Length of 1 in. Schedule 40 Steel Pipe (C=120), ft | Flexibility Type |
FT-GN-2515-A | 200 | 300(149) | 1X 1/2 | 2.0(610) | 1 | 4 | 7 | Limited |
FT-GN-2515-B | 200 | 300(149) | 1X 1/2 | 4.0(1220) | 3 | 4 | 23 | Limited |
FT-GN-2515-C | 200 | 300(149) | 1X 1/2 | 6.0(1800) | 3 | 4 | 30 | Limited |
Largest K-factor: 5.6.
Orifice diameter of the sprinkler intended to be connected to the fitting: 1/2” NPT.
Intended to be used in both wet and dry systems.

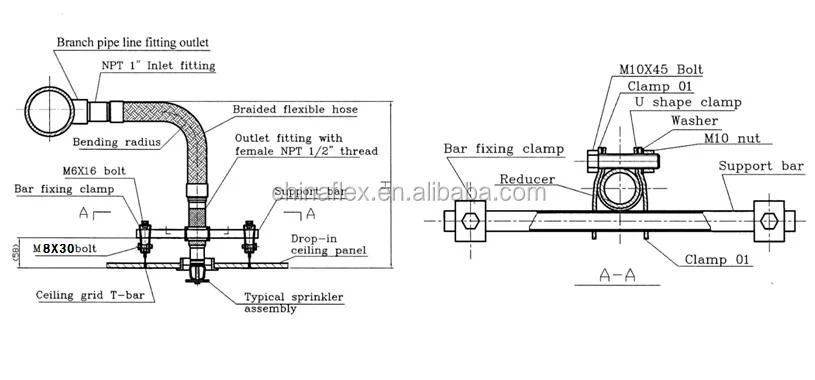

Minimum hose installation clearance(H): 250mm.
Anchoring components model: FT-A01.
Specified minimum spacing for anchoring components attached to the building components: 100 mm.
Specified maximum spacing for anchoring components attached to the building components: 610 mm.
Interested in our Fire Sprinkler Hose Pipe, just contact us!
Technical data
(1)Rated Pressure, psig: 200;
(2)Max. Ambient Temp,°F (°C): 300 (149);
(3)Nom. Inlet by Outlet Size, in.: 1x1/2;
(4)Assembly Length,ft(mm): 2.0 (610);
(5)Max No. of 90°Bends: 1;
(6)Bend Radius, in.: 4;
(7)Equivalent Length of 1 in. Schedule 40 Steel Pipe (C = 120), ft: 7;
(8)Flexibility Type: Limited;
Property advantages
(1)increasing stability
Because the Fire Sprinkler Hose Pipe, braid, connectors are all made of stainless steel and are welded together when compared with carbon steel connectors, which are connected by threads and sealed by a rubber washer, our products can endure high temperatures ( up to 400℉), high pressure (up to 5 MPa), it’s high reliability makes it is very suitable for the applications in warehouses, airports, railway stations, and other important facilities.
(2) high usage time
With integral stainless steel welding structure， also with solution treatment, the corrosion resistance and service life of the FT-GN series flexible sprinkler hose with fittings are greatly improved, the outlet connector cross-section is round shape, without any twist torque being applied to the hose, so it will not causes any residual stress during installation, when compared with carbon steel connectors, the service life is at least doubled.
(3)More fastness join
(4)decrease budget
(5)Simpler appointment
